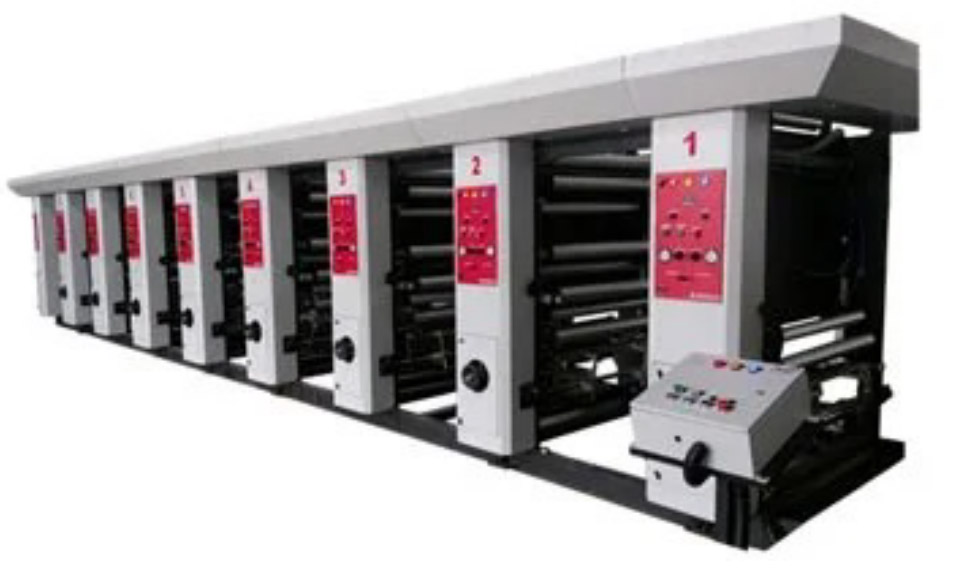

Rotogravure Printing Machine

Rotogravure Printing Machine

3 Drive Rotogravure Printing Machine consists of Unwind Unit, Printing Stations, Drying Chambers fitted with blowers on individual Printing Stations.

Rewinding Station fitted with friction type Auto Clutch System. Each Printing Station has Vertical and Horizontal Registration Arrangement.

Registration can be adjusted during Running Machine. The Doctor Blade assembly is string loaded provided with lateral oscillation to increase life of Printing Cylinders.

3 Drive Rotogravure Printing Machine are available in wide range of Web Width and Color Configurations, from Single Color to 10 Colors.

3 Drive Rotogravure Printing Machine are higher efficiency Machines with options of Front & Reverse printing facility.

The machines are designed & constructed to meet high standards of flexible printing.

The drying system is designed to month high speed printing by printing dryers with Heaters & Blowers.

The machine can be provided with various control systems (Optional) like web aligner, ARC System, Web Video System Etc.

Technical Specification:

Machine Type: 3 Drive Rotogravure Printing Machine

No. of Printing Station: 1 to 10 Color

Working Width: 300 mm to 1550 mm

Material to be Print: PET Film, BOPP Film, PE Film, Paper Roll, Aluminum Foil

Line Speed: 100 mtr / min

Registration System: Manual Screw Type

Web Guiding: Electronic Edge Guide

Drying Zone: Wooden Fire / Gas Fire / Diesel Hot Air / Electric Generator

Drying Zone Lifting: Manually

Doctor Blade Function: Mechanical

Impression Roll Function: Pneumatic

Power Load: 32.5 HP

Dimension (L x W x H) Feet: 42 x 8 x 7
