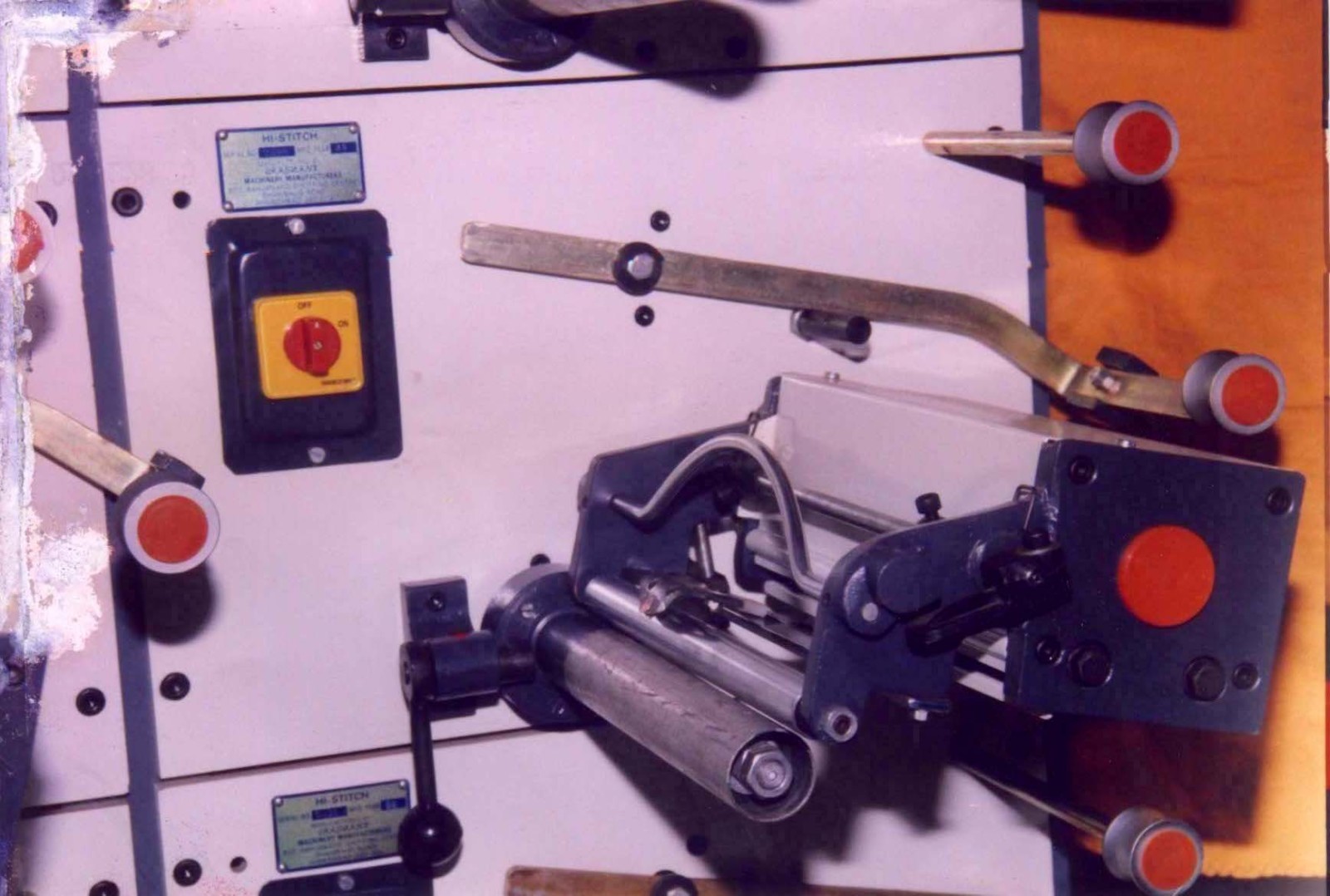

Cheese Winders

Cheese Winders

Roto Technik is the largest manufacturer of winders in India. With incorporation of modern technology concepts and fulfilling the quality parameters of packages for subsequent processing. We have developed our cheese winders.

Technical Specification:

  • Cheese Pipe Data
    ID : 35 MM
    OD : 40 MM
    Length : 220 MM or As per customer specification.
  • Speed upto 160/240 Meter per Minute
  • Standard Frame Size of 12 Spindle Unit :
    Length : 152 CM
    Width : 76 CM
    Height : 176 CM
  • Power requirement per Spindle – 0.18 kW
  • Motor Specifications :
    RPM : 2800
    Phase : III (Three)
    HP : 0.25
    V : 400 – 440 A.C.
[shareaholic app="share_buttons" id="<524c2e364cf9cac6dc416aa767198637>"]

Features:

Magnetic Clutch Drive:

Unique permanent magnetic clutch drive for Spindle unit for smooth and high speed.

Precision Cam Box Assembly:

Fully enclosed dust proof cam box with self lubricating 50 mm diameter cam. So no oiling almost maintenance free.

One Snap Loading/Unloading:

Cheese bobbin, new lever mechanism for quick loading unloading of bobbins.

Individual ‘DOL’ starter:

For Protection of motors against single phasing and overheating.

Fine Winding Ratio Adjuster:

For winding tape yarn, side by side of any width between 1.5 mm to 4 mm.

Rigid Quality Control:

At all stage of manufacturing and using standard products or original equipment for machines.

Automatic Tension Device:

Unique counter weight automatic tension regulation for perfect and parallel winding.
