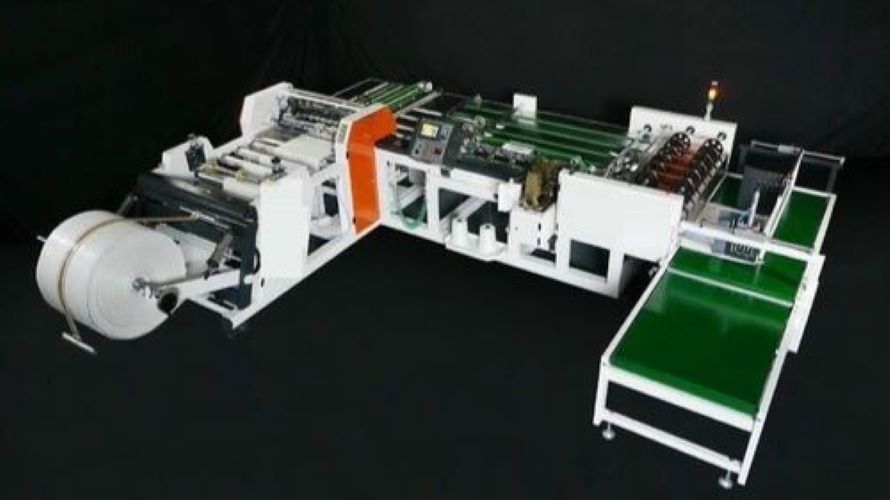

Automatic Bag Cutting & Stitching (BCS) Machine
Automatic Bag Cutting & Stitching (BCS) Machine
Model: RT BCS-35
Diameter of unwinding cloth: 1300 mm maximum applicable
Width of unwinding cloth: 16 – 32 Inch adjustable
Cutting Length: 17 – 55 Inch adjustable
Production Output: 32 – 40 bag / minute depend upon bag size
Print mark sensor: Precise cutting of printed roll
Folding Device: Single Folder & Double Folder attachment
Sewing Unit: 4500 RPM, 1 HP
Length Accuracy: +/- 1 mm range
Cold Cutting (Laminated Bag): High speed roadless cylinder
Hot Cutting (Un-laminated Bag): High quality alloy steel cutter with tubular heater
Connected Load: 8 HP
Main Features:
- Suitable for PP / HDPE / BOPP Woven Sack Bag
- Equipped with servo motor for precise cutting length (+/- 1 mm)
- Equipped with high quality alloy steel cutter
- Equipped with bag mouth anti-stick device
- Equipped with web guide system
- Pneumatic lifting at un-winder to lift roll of 400 kg
Optional Features:
- Zig-Zag heat cutter for un-laminated bags
- Air Compressor 5 HP in customer scope
- Perforation attachment
- Straight & Twist Gusset attachment
- Thread break sensor attachment
- “C” or “D” Cut Punching attachment
